How to generate your authentication key pair

When you create a project and select your content protection level to be "DRM" or "DRM Plus", BlendVision Loom will require you to generate a JSON Web Token(JWT) as a key for DRM server authentication.

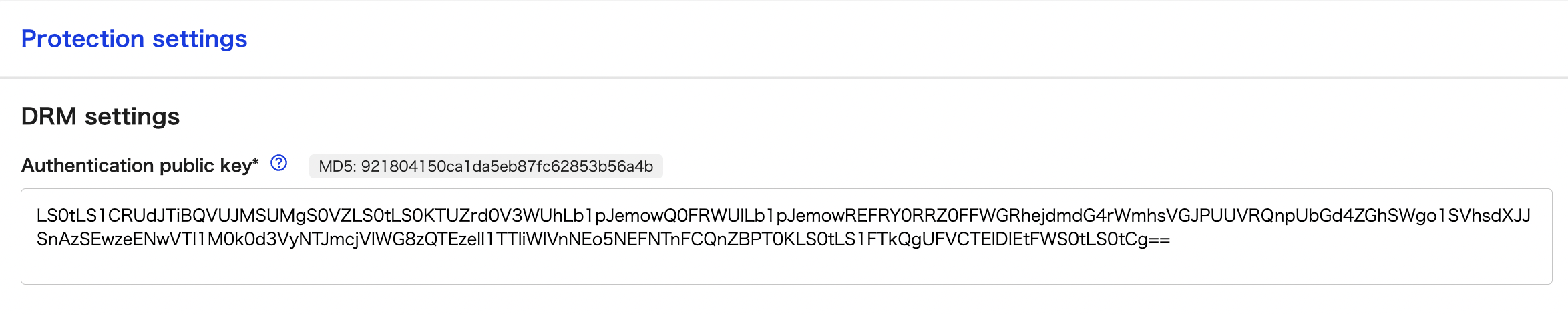

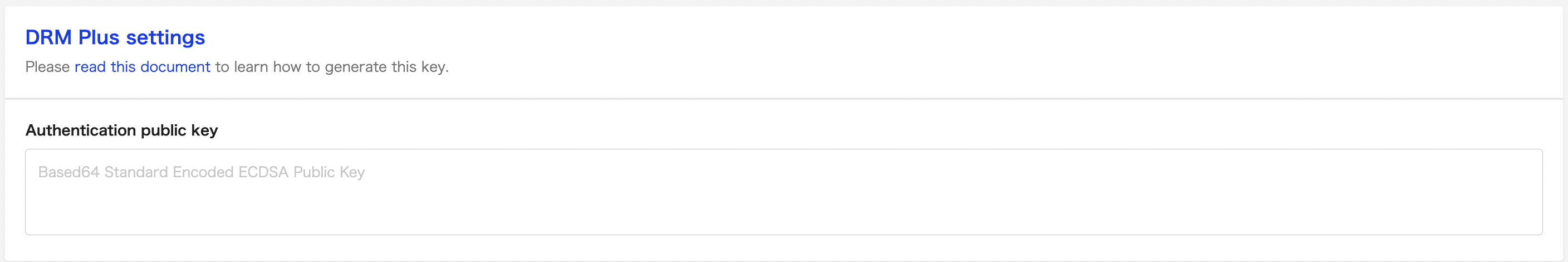

Sample of Console UI to show where to input this information:

BlendVIsion DRM server uses JSON Web Token(JWT) with ECDSA (using P-256 and SHA-256 (ES256)) for signing.

Please check below for the key generation instruction and a JWT example:

1. Open "Terminal" on your device then input the following key generation command

2. Private Key Generation

$> openssl ecparam -genkey -name prime256v1 -noout -out private-ec256.pem
read EC key
writing EC key

3. Public Key Generation

$> openssl ec -in private-ec256.pem -pubout -out public-ec256.pem

4. Converting Public Key to Base64

 cat public-ec256.pem | base64

5. Copy the converted public key and paste it to console

the key will end with the symbol "=="

JWT Structure

Standard Claims:

• sub

  • Type: String

  • Value: [Optional]. the content id provided by user

• exp

  • Type: Integer

  • Value: the expected UNIX timestamp of the token expiration

• iat

  • Type: Integer

  • Value: The Unix timestamp of the token issue

• iss

  • Type: String

  • Value: use . to concate organization_id and project_id

  • Example: UUID_1.UUID_2

Custom Claims:

• version:

  • Type: Integer

  • Value: Current struct version. Provided by BlendVision Document.

• drm_config:

  • Type: JSON Object

  • Value:

    • Key Name: fairplay, playreader, widevine

    • Object Context:

      • hdcp:

        The options would be to apply for HDCP setting

        • Type: String

        • Values: hdcp_none

          • Enumeration: (To be stated)

      • offline_duration:

        • Type: integer

        • Values: The lifetime of offline playback license in second

      • online_duration

        • Type: integer

        • Values: The lifetime of online playback license in second

      • allow_offline_playback

        • Type: boolean

      • allow_analog_out

        • Type: boolean

Example

{
"drm_config": {
"version": 1,
"fairplay": {
"hdcp": "hdcp_none",
"online_duration": 0,
"offline_duration": 86400,
"allow_offline_playback": false,
"allow_analog_out": false
},
"playready": {
"hdcp": "hdcp_none",
"online_duration": 0,
"offline_duration": 86400,
"allow_offline_playback": false,
"allow_analog_out": false
},
"widevine": {
"hdcp": "hdcp_none",
"online_duration": 0,
"offline_duration": 86400,
"allow_offline_playback": false,
"allow_analog_out": false
}
},
"sub": "{customer defined content id}",
"exp": 1623764349,
"iat": 1623742749,
"iss": "{customer organization id}.{customer project id}"
}
